Blackmagic Design

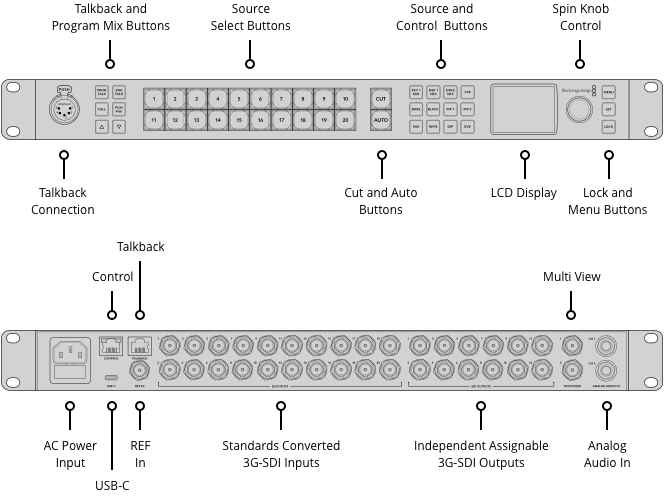

ATEM 2 M/E Constellation HD
Compact live production switcher with streaming.
Technical Specifications
Video Inputs
20 x SDI
SDI Preview Outputs
Any of the 12 SDI outputs
Video Outputs
12 x SDI
SDI Program Outputs
Any of the 12 SDI outputs
SDI Rates
1.5G, 3G
Down Converted SDI Program Output
None
Audio Inputs
2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback
Webcam Output
1 x USB-C supporting 720p or 1080p at PGM frame rate
Audio Outputs
1 x 5 pin XLR Talkback
SDI Audio Inputs
8 Ch embedded audio on all SDI inputs
SDI Audio Outputs
16 Ch embedded audio on all SDI outputs
Timecode Connections
None
Reference Input
Tri-Sync or Black Burst
Video Input Re-Sync
On all 20 inputs
Frame Rate and Format Converters
On all 20 inputs
SDI Aux Outputs
Any of the 12 SDI outputs
SDI Preview Outputs
Any of the 12 SDI outputs
SDI Program Outputs
Any of the 12 SDI outputs
Total Multi Views
2 x 3G-SDI
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product
Ethernet
Supports 10/100/1000 BASE-T
Computer Interface
1 x USB-C supports USB 2.0
